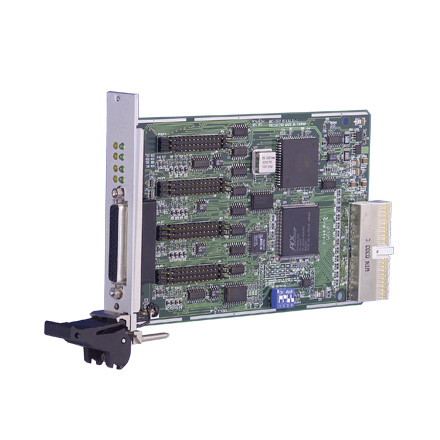

MIC-3612是一款4端口RS-232/422/485 PCI 通信卡。它和PCI 2.1 bus规格兼容。MIC-3612提供4个过电压保护，RS-232/422/485端口满足用户需要。它有许多特色功能：高传输速度921.6 Kbps;4个独立的RS-232/422/485端口；可选的过电压保护等等。MIC-3612还带有高性能的128节 FIFO 16PCI954 UART以减少CPU的负荷。

特点

符合 PCI 2.1 规格

通讯速度可达 921.6 Kbps

4 端口 RS-232/422/485浪涌保护

128 字节标准的 16C954 UART

标准工业 CompactPCI® 3U 板尺寸

I/O 地址由 PCI 即插即用功能自动分配

OS 支持： Windows® 98/2000/XP, Linux, VxWorks

提高系统性能的中断状态寄存器

自动 RS-485 数据流控制

Tx/Rx LED 指示灯

规格

通讯 总线控制器: PLX9030

控制器UART: 16C954

数据位 5, 6, 7, 8

数据信号 TxD, RxD, RTS, CTS, DTR,DSR, DCD, RI, GND(用于 RS-232)

TxD, RxD, RTS, CTS(用于 RS-422)

DATA+, DATA- (用于 RS-485)

IRQ 所有端口使用由 PCI 即插即用功能分配的同一个 IRQ

校验 无校验，偶校验，奇校验

速率 (bps) 50 ~ 921.6 k

停止位 1, 1.5, 2

一般规格

PICMG 符合性 CompactPCI V2.0, R 3.0热插拔 V2.1, R 2.0

总线类型 CompactPCI V2.1

I/O 接口 DB 44孔型接口

尺寸(L x H) 160 x 100 mm (6.3" x 3.9"),带 3U/6U 把手

环境参数

工作温度 0 ~ 70° C (IEC68-2-1, 2)

储存温度 -20 ~ 80° C

工作湿度 5 ~ 95% RH, 无凝结 (IEC68-2-1, 2)

查看源码



#ifndef __VXMIC3612SIO_H
#define __VXMIC3612SIO_H

#ifdef __cplusplus
extern "C" {
#endif

#define MIC_3612_DEVID (0X3612)
#define MIC_3612_VENDORID (0x13fe)

#define MIC3612_BOARD_MAX 0x4
#define MIC3612_CHANNEL_NUM 0x4

#define MIC3612_BAUD_DEF 9600
#define MIC3612_INPUT_CLOCK 14745600

#define MIC3612_MODE_NORMAL 0x0
#define MIC3612_MODE_LOOPBACK 0x1 /*内部自环模式*/

#define MIC3612_CHANNELMODE_POLL 0x0 /*轮询模式*/
#define MIC3612_CHANNELMODE_INT 0x1 /*中断模式*/

#define MIC3612_RCVBUF_LEN 0x400
#define MIC3612_STARTFLAG 0xaa
#define MIC3612_READFLAG 0x55

/* ioctl选项 */

#define BAUDRATE_SET 0
#define BAUDRATE_GET 1
#define SIOMODE_SET 2
#define SIOMODE_GET 3
#define AVAILMODES_GET 4
#define DATAFORMAT_SET 5

/* Register offsets from base address */

#define RBR 0x00 /* receiver buffer register */
#define THR 0x00 /* transmit holding register */
#define DLL 0x00 /* divisor latch */
#define IER 0x01 /* interrupt enable register */
#define DLM 0x01 /* divisor latch(MS) */
#define ISR 0x02 /* interrupt status register */
#define FCR 0x02 /* FIFO control register */
#define LCR 0x03 /* line control register */
#define MCR 0x04 /* modem control register */
#define LSR 0x05 /* line status register */
#define MSR 0x06 /* modem status register */
#define SCR 0x07 /* scratch register */

#define ICR 0x05 /* Indexed Control Register */
#define EFR 0x2 /* I/O: Extended Features Register 访问该寄存器的时候，LCR=0xBF */

/* Specific Registers */

#define ASR 0x01 /* Additional Status Register */
#define RFL 0x03 /* Number of characters in the receiver FIFO */
#define TFL 0x04 /* Number of characters in the transmitter FIFO */



/* The ICR registers */
#define UART_ACR 0x00 /* Additional Control Register */
#define UART_CPR 0x01 /* Clock Prescalar Register */
#define UART_TCR 0x02 /* Times Clock Register */
#define UART_CKS 0x03 /* Clock Select Register */
#define UART_TTL 0x04 /* Transmitter Interrupt Trigger Level */
#define UART_RTL 0x05 /* Receiver Interrupt Trigger Level */
#define UART_FCL 0x06 /* Flow Control Level Lower */
#define UART_FCH 0x07 /* Flow Control Level Higher */
#define UART_ID1 0x08 /* ID #1 */
#define UART_ID2 0x09 /* ID #2 */
#define UART_ID3 0x0A /* ID #3 */
#define UART_REV 0x0B /* Revision */
#define UART_CSR 0x0C /* Channel Software Reset */
#define UART_NMR 0x0D /* Nine-bit Mode Register */
#define UART_CTR 0xFF


/* Line Status Register */

#define LSR_DR 0x01 /* Data Ready */
#define RxCHAR_AVAIL LSR_DR
#define LSR_OE 0x02 /* Overrun Error */
#define LSR_PE 0x04 /* Parity Error */
#define LSR_FE 0x08 /* Framing Error */
#define LSR_BI 0x10 /* Received Break Signal */
#define LSR_THRE 0x20 /* Transmit Holding Register Empty */
#define LSR_TEMT 0x40 /* THR and FIFO empty */
#define LSR_FERR 0x80 /* Parity, Framing error or break in FIFO */




/* Line Control Register values */

#define CHAR_LEN_5 0x00
#define CHAR_LEN_6 0x01
#define CHAR_LEN_7 0x02
#define CHAR_LEN_8 0x03
#define LCR_STB 0x04 /* Stop bit control (1.5/2)*/
#define ONE_STOP 0x00 /* One stop bit! */
#define LCR_PEN 0x08 /* Parity Enable */
#define PARITY_NONE 0x00
#define LCR_EPS 0x10 /* Even Parity Select */
#define LCR_SP 0x20 /* Force Parity */
#define LCR_SBRK 0x40 /* Start Break */
#define LCR_DLAB 0x80 /* Divisor Latch Access Bit */
#define DLAB LCR_DLAB


/* Modem Control Register */

#define MCR_DTR 0x01 /* state of DTR output */
#define DTR MCR_DTR
#define MCR_RTS 0x02 /* state of RTS output */
#define MCR_OUT1 0x04 /* UNUSED in OX16954 */
#define MCR_INT 0x08 /* Int Mode */
#define MCR_LOOP 0x10 /* Enable Loopback mode */

/*
 * The 16C950 Additional Control Reigster
 */
#define UART_ACR_RXDIS 0x01 /* Receiver disable */
#define UART_ACR_TXDIS 0x02 /* Receiver disable */
#define UART_ACR_DSRFC 0x04 /* DSR Flow Control */
#define UART_ACR_TLENB 0x20 /* 950 trigger levels enable */
#define UART_ACR_ICRRD 0x40 /* ICR Read enable */
#define UART_ACR_ASREN 0x80 /* Additional status enable */

#define UART_EFR_ECB 0x10 /* Enhanced control bit */

/* FIFO Control Register */

#define FCR_EN 0x01 /* FIFO Enable */
#define FIFO_ENABLE FCR_EN
#define FCR_RXCLR 0x02 /* Rx FIFO Clear */
#define RxCLEAR FCR_RXCLR
#define FCR_TXCLR 0x04 /* Tx FIFO Clear */
#define TxCLEAR FCR_TXCLR
#define FCR_DMA 0x08 /* FIFO Mode Control */
#define FCR_RXTRIG_L 0x40 /* FIFO Trigger level Low */
#define FCR_RXTRIG_H 0x80 /* FIFO Trigger level High */

/* Interrupt Enable Register */

#define IER_ERDAI 0x01 /* Enable Rx Data Available Int */
#define RxFIFO_BIT IER_ERDAI
#define IER_ETHREI 0x02 /* Enable THR Empty Int */
#define TxFIFO_BIT IER_ETHREI
#define IER_ELSI 0x04 /* Enable Line Status Int */
#define Rx_BIT IER_ELSI
#define IER_EMSI 0x08 /* Enable Modem Status Int */

/* Interrupt Statis Register */

#define ISR_IP 0x01 /* Interrupt Pending */
#define ISR_ID 0x0E /* Interrupt source mask */
#define ISR_RLS 0x06 /* Rx Line Status Int */
#define Rx_INT ISR_RLS
#define ISR_RDA 0x04 /* Rx Data Available */
#define RxFIFO_INT ISR_RDA
#define ISR_THRE 0x02 /* THR Empty */
#define TxFIFO_INT ISR_THRE
#define ISR_MSTAT 0x00 /* Modem Status Register Int */
#define ISR_TIMEOUT 0x0C /* Rx Data Timeout */

typedef struct ox16954_chan /* OX16954_CHAN */
{

    BOOL bInit;
    UINT32 ulBaseAddr; /* ST16954 registers baseaddr*/
    UINT8 level; /* Interrupt level for this device */
    BOOL b485; /* channel is 485/422*/
    UINT8 ier; /* copy of IER */
    UINT8 lcr; /* copy of LCR */
    UINT8 acr; /* copy of ACR */
    UINT16 fifosize; /* fifo size */
    UINT8 mode; /* 0-normal mode; 1-loopback mode */
    UINT32 channelMode; /* such as INT, POLL modes */
    UINT32 baudRate; /* the current baud rate */
    UINT32 xtal; /* UART clock frequency */
    SEM_ID rxSem; /* 中断接收模式下的信号量*/
    UINT8 rBuf[MIC3612_RCVBUF_LEN]; /*under int mode,receive data buffer*/
    UINT32 ulWritePos; /*指向下个写位置*/
    UINT32 ulReadPos; /*指向下个读位置*/

} OX16954_CHAN_ST;

typedef struct
{
    char dataBits; /* 数据位5，6，7，8 */
    char stopBits; /* 停止位1，2 */
    char parityBits; /* 奇偶校验位 0-没有 1-奇校验 2-偶校验 */
} DATAFORMAT_ST;

extern STATUS Hwa_MIC3612_Init(unsigned char uchBoardNo, unsigned char uchChanNo);
extern STATUS Hwa_MIC3612_Ioctl(unsigned char uchBoardNo, unsigned char uchChanNo, int request, int arg);
extern STATUS Hwa_MIC3612_Send(unsigned char uchBoardNo, unsigned char uchChanNo, char *pszData, unsigned long ulCount);
extern STATUS Hwa_MIC3612_Rcv(unsigned char uchBoardNo, unsigned char uchChanNo, unsigned char *pszRcvBuf, unsigned long *pszLen);
extern STATUS Hwa_MIC3612_IntRcv(unsigned char uchBoardNo, unsigned char uchChanNo, unsigned char *pszRcvBuf, unsigned long *pulLen);
extern STATUS Hwa_MIC3612_IntConfig(unsigned char uchBoardNo, unsigned char uchChanNo, unsigned char Rlevel);
extern STATUS Hwa_MIC3612_Exit(unsigned char uchBoardNo, unsigned char uchChanNo);

#ifdef __cplusplus
}
#endif

#endif



请联系我们获得源码，请关注微信公众号：北南南北
